800G FR4

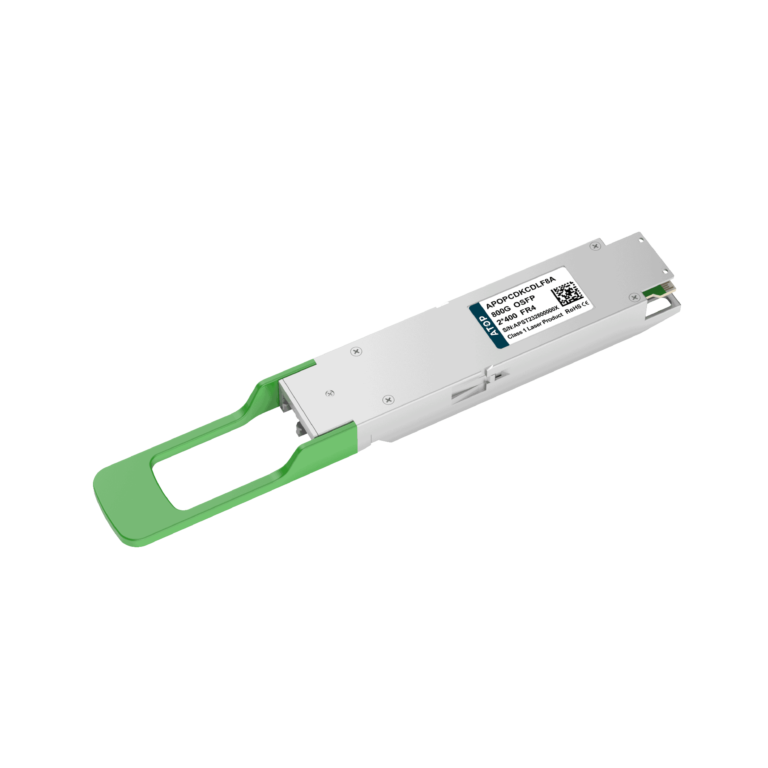

800G OSFP 2*FR4 2km Transceiver

The ATOP OSFP 2*FR4 transceiver is a high-quality optical transceiver designed for utilization in 800 Gigabit Ethernet links over 2 km of single-mode fiber. This 800G FR 2km transceiver features 8 independent electrical input/output channels, operating at speeds of up to 106.25 Gbps per channel. This 800g OSFP 2*400 FR4 transceiver is composed of two transmitter/receiver units, with each unit functioning across a set of 4 wavelengths on the ITU G.694.2 CWDM grid near 1300 nm.The 800G transceiver’s electrical interface conforms to the 800GAUI-8 standard defined by IEEE 802.3ck, , and it is also compliant with the OSFP MSA. It is suitable for deployment in various network applications, including Internet protocol switches and routers.
Request a Quote
800G FR4

Product Features

Package:

OSFP

Data Rate:

800G

Wavelength:

1264.5nm~1337.5nm

Component:

EML+PIN

Output Power:

-3.2~+4dBm

Rec. Sens:

-4.6dBm

Connector:

LC

Case Temp.:

C

Reach:

2km

Multi-rate:

N

Application

800G Ethernet

Data Center Switch

Data Center Interconnect
