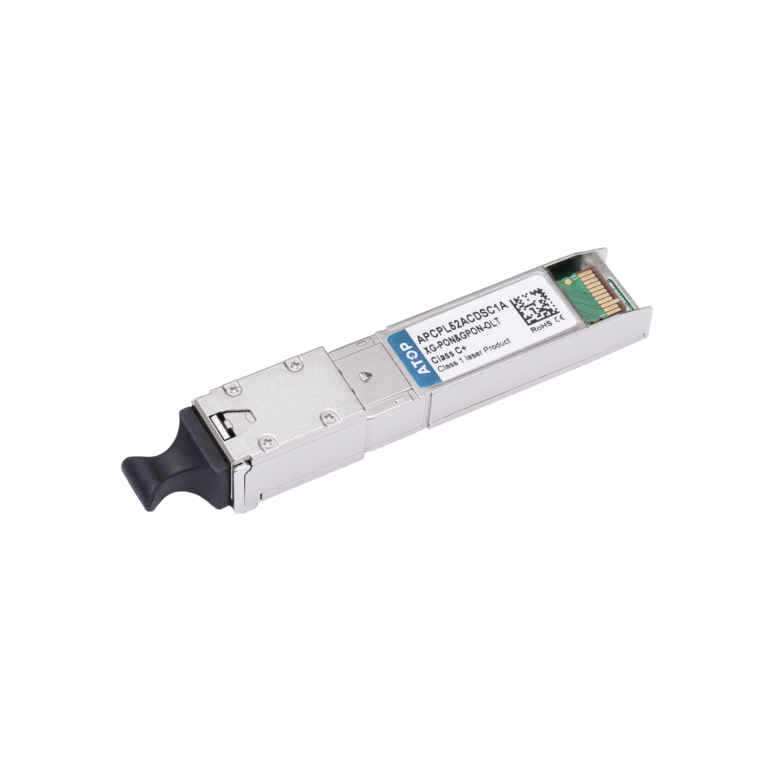

XG-PON&GPON OLT Class C+ 20km Transceiver
ATOP XG-PON&GPON OLT Class C+ is a combination of XG-PON OLT and OLT GPON optical transceiver in a SFP+ housing, and it is compliant to ITU-T G.987.2 XG-PON and ITU-T G.984.2 GPON standard. This module can support XG-PON and GPON over a single fiber via coarse wave division multiplexing. XG-PON feature supports 9.953 Gbps continuous-mode transmission by 1577nm EML laser and 2.488 Gbps burst-mode reception by 1270 nm APD/TIA. GPON feature supports 2.488 Gbps continuous-mode transmission by 1490 nm DFB laser and 1.244 Gbps burst-mode reception by 1310 nm APD/TIA.
It has been designed to meet the harshest external operating conditions that include temperature,
humidity and EMI interference. The module offers very high functionality and feature integration,
accessible via a two-wire serial interface.
Product Features
Package:
SFP+
Data Rate:
9.953G&2.488G(Down)/
2.488G&1.244G(Up)
Wavelength:
1490nm (GPON)/ 1577nm (XG-PON)
Component:
DFB/EML
Output Power:
+3~+7dBm(GPON)/ +5~+9dBm(XG-PON)
Rec. Sens:
-32dBm(GPON)/ -30.5dBm(XG-PON)
Connector:
SC
Case Temp.:
C
Reach:
20KM
Multi-rate:
Y
Application
Gigabits Access networks
FTTH/FTTC/FTTB
XG-PON and GPON Combo Access networks
